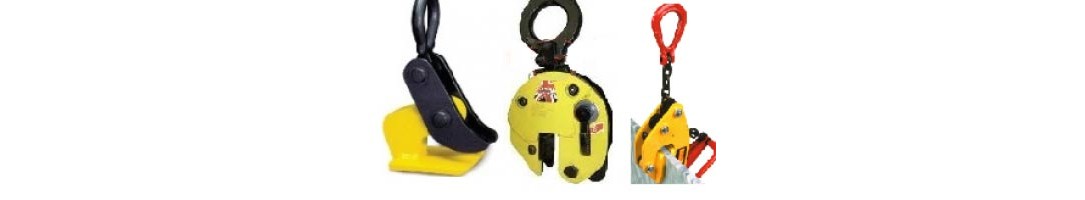

Plate Lifting Clamps

Enquiry Button

Plate clamps are used to help assist with the heavy lifting of steel plates and other sheet materials. Utilised in fabrication and industrial operations, our plate clamps are available in heavy duty models, high grip models and twin clamp models.

Plate clamps are typically used in two’s in order to help lift and support heavy loads and materials. There are two key types – vertical plate clamps and horizontal plate clamps. Universal plate lifting clamps are available allowing a variety of lifting solutions to suit.

Often plate lifting clamps leave marks on materials due to their clamps containing teeth to help grip sheet and fabrication materials. However, we stock specialist non-marking models that are designed to leave no marks when carrying, moving and lifting materials. This means that the finishes of your steel fabrications are not scratched, marked or damaged during the production and manufacturing stages helping save time and effort.

We also offer a range of servicing and repair services, ensuring that your plate clamps are working effectively and efficiently at all times. We can also provide safety advice when operating our equipment and can provide training as standard.

92 Series Vertical Lifting Clamp - Capacity 500-3000kg

Vertical Lifting Clamp Vertical Lifting Clamp

The LGD92 Plate Clamps are normally used for the transport of sheet metal or for lifting from the horizontal through 180°

The jaw is operated via a locking handle on the 1500, 2000 and 3000kg option, the 500kg is operated via a spring loaded cam.

Vertical Lifting Clamp Spec Vertical Lifting Clamp

The material being lifted must have a hardness level below HRC30 . BRINELL300

L J Non-marking Plate Clamp - Capacity 500-1500kg

Non-Marking Plate Clamp

The non-marking plate clamp is for lifting, turning and transporting of many types of material i.e. steel, stainless steel, aluminium, timber without damaging marking or leaving dents on the surface. Also used for hard surfaces

Vertical Lifting Clamp Spec Non-marking plate clamp diagram

The surface of the plate must be free of grease and oil. The clamp comes standard with leather lined pads and jaw. Rubber pads can be fitted for polished materials as an option

CY Hinged Vertical Plate Clamp - Capacity 1000kg, 2000kg, 3000kg

Hinged Vertical Plate Clamp

The hinged vertical plate clamp can be used for the lifting and transport of plate at different angles, used for lifting from the horizontal and placing down in the vertical position.

Vertical Lifting Clamp Spec Hinged Plate Clamp

The main benefit of the hinged plate clamp is that much longer material can be handled using 2 clamps on a 2 legged chain sling (no need for a spreader beam)

hinged plate clamp diagram

The load capacity must be reduced with the angle of the hook ring as shown in the diagram to the left.

CX Heavy Duty Hinged Vertical Plate Clamp - Capacity 1500-10000kg

Heavy Duty Hinged Plate Clamp 90 degrees plate clamp heavy duty plate clamp diagram

The heavy duty hinged plate clamp is used for the lifting and transport of plate at different angles at high WLL.

This clamp can turn racked plates through 90° as shown

The load capacity must be reduced with the angle of the hook ring as shown in the diagram.

Heavy Duty Hinged Vertical Plate Clamp - Capacity 1500-10000kg Spec

HG High Grip - Vertical Plate Clamp - Capacity 500 - 4000kg

High Grip vertical plate clamp high grip vertical plate clamp

The high grip vertical clamps heave a very high clamping force which makes the clamp able to lift up plates with a hardness up to HRC40 / BRINELL375. The clamp is operated via a locking handle

High Grip - Vertical Plate Clamp - Capacity 500 - 4000kg Spec

CZ Heavy Duty Plate Clamp - Capacity 1000 - 30000kg

Heavy Duty Plate Clamp Heavy Duty Plate Clamp Heavy Duty Plate Clamp

The heavy duty plate clamp-fixed eye is used for the lifting and transport of sheet steel plates in the vertical position, also can rotate through 180°

The clamp is operated via a locking handle.

Heavy Duty Plate Clamp - Capacity 1000 - 30000kg Spec

This clamp can also be ordered with extra wide jaw capacity as per the table above.

CH / HH Horizontal Plate Clamps

Horizontal Plate Clamps

Our range of horizontal plate clamps are best suited for use when lifting and transporting single or multiple plates with a minimum plate thickness of 5mm. Working in pairs, chain sling and spreader beam arrangements are recommended.

Horizontal Plate ClampHorizontal Plate Clamp

A pair of clamps with a double leg chain for smaller plates up to 1500mm long. For larger plates use a spreader beam and two pairs of clamps.

Horizontal Plate ClampHorizontal Plate Clamp

CH / HH Horizontal Plate Clamps Spec

Economy Range Vertical Plate Clamps

Economy Range Vertical Plate Clamps

Our economy range of vertical plate clamps utilise a sophisticated hinged eye and locking system that is ideal for lifting loads and transporting weights ranging from 500kgs to 3000kgs.

RH/WH/WHL/WHP Horizontal Plate Clamps

RH/WH/WHL/WHP Horizontal Plate Clamps

To be used in pairs these plate clamps are for transporting single and multiple plates horizontally. Available in 4 options:

  • Option 1: RH clamp with roller for reduced marking.
  • Option 2: WH Clamp with hardened steel teeth.
  • Option 3: WHL Clamp with protective plastic lining on the jaw and toe plate, non-marking.
  • Option 4: WHP clamp with polyurethane protective coating covering the jaw and toe plate.
RH/WH/WHL/WHP Horizontal Plate Clamps Specification

THK Horizontal Plate Clamp

Most suited to lifting thin plates with the reversed tooth jaws.

THK Horizontal Plate Clamp THK Horizontal Plate Clamp Specification

THS Horizontal Plate Clamp

Ideal for the horizontal loading of sheets into presses etc. Can be used individually for loading but need to be used in pairs for transportation. Incorporates a spring loaded safety lock.

THS Horizontal Plate Clamp THS Horizontal Plate Clamp Specification

TSB Vertical Plate Clamp ( non-marking)

A large jaw capacity vertical lifting plate clamp which produces no marks due to using the friction process. This is created by the use of a special lining on the jaw and pad, similar to brake linings.

TSB Vertical Plate Clamp ( non-marking) TSB Vertical Plate Clamp ( non-marking) Specification

TAG / TWG Universal Plate Clamp (wide Jaw)

A versatile, universal plate clamp with wide jaws making them suitable for numerous applications. Additional chain slings are not necessary. With automatic, protective lined, gripping jaws, held by a positive tension jaw spring. A quick release lever enables quicker loading and unloading. Service friendly.

TAG / TWG Universal Plate Clamp (wide Jaw) TAG / TWG Universal Plate Clamp (wide Jaw) Specification
