Camlok PH Pipe Hooks

Camlok PH Pipe Hooks

The PH pipe hook range from Camlok includes 5 models with various safe working loads up to 10000kg.
  • Brand:: Camlock
  • Product Code: Camlok PH
  • Availability: In Stock

Call 01384 76961 for price.

About the Camlok PH Pipe Hooks

These pipe hooks are supplied in pairs complete with shackles as standard. These come un-coated and with no lining as standard, however a polyurethane coating may be applied for added protection to the pipe if required, in this case the thickness capacities will be reduced by 5mm.

There are 2 types of pipe hooks - 1 for top angles between 60 & 90 degrees and the other for top angles between 90 & 120 degrees.

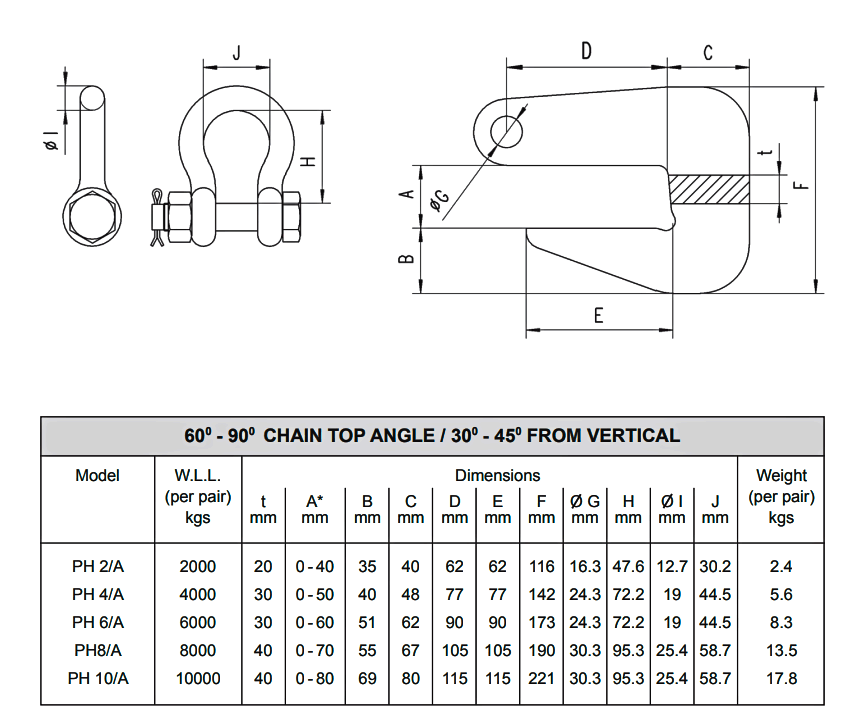

Model PH2/A PH4/A PH6/A PH8/A PH10/A 60-90 degrees chain top angle
t mm 20 30 30 40 40   Camlok PH Pipe Hooks
A mm 0-40 0-50 0-60 0-70 0-80
B mm 35 40 51 55 69
C mm 40 48 62 67 80
D mm 62 77 90 105 115
E mm 62 77 90 105 115
F mm 116 142 173 190 221
ØG mm 16.3 24.3 24.3 30.3 30.3
H mm 47.6 72.2 72.2 95.3 95.3
ØI mm 12.7 19 19 25.4 25.4
J mm  30.2 44.5 44.5 58.7 58.7



Model PH2/B PH4/B PH6/B PH8/B PH10/B 90-120 degrees chain top angle
t mm 20 30 40 40 50                                                                Camlok PH Pipe Hooks
A mm 0-30 10-40 20-50 30-65 30-75
B mm 34 39 43 54 60
C mm 40 50 55 65 70
D mm 82 95 106 119 143
E mm 75 80 95 100 125
F mm 106 131 153 185 208
ØG mm 16.3 24.3 30.3 30.3 36.3
H mm 30.2 44.5 58.7 58.7 73
ØI mm 12.7 19 25.4 25.4 31.8
J mm  47.6 72.2 95.3 95.3 117
Model WLL (KG) Pipe wall thickness (without lining) mm Weight (KG)
PH2/B 2000 0-30 2.8
PH4/B 4000 10-40 6.3
PH6/B 6000 20-50 10.6
PH8/B 8000 30-65 14.4
PH10/B 10000 30-75 13.3
