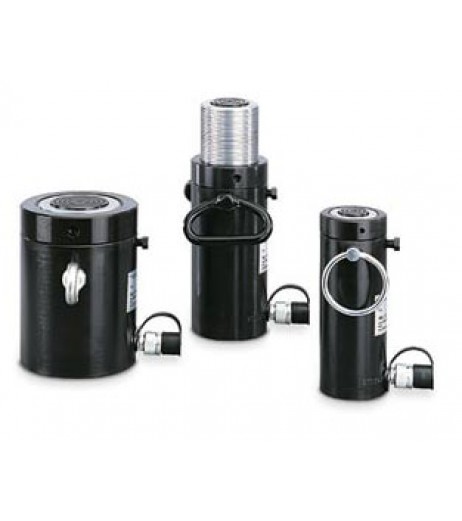

Yale YEL Single Acting Gravity Return Cylinder

Yale YEL Single Acting Gravity Return Cylinder

These YEL hydraulic cylinders come complete with safety lock nut and are single acting with gravity return.
  • Brand:: YALE
  • Product Code: Yale YEL Single Acting Gravity Return Cylinder
  • Availability: In Stock

Call 01384 76961 for price.

Enquire Now

Recommended for use when loads stay in an elevated position for long periods with the safety lock nut ensuring a positive load hold in any position, enabling work to be carried out under the load.

KEY FACTS for the Yale YEL Single Acting Gravity Return Cylinder

  • Single acting
  • gravity return
  • hard chromium-plated piston with trapezoidal thread
  • oil port thread 3/8 NPT
  • female coupler half
  • lifting rings
  • definite piston end stop by overflow hole.
Cylinder size (t) Model Capacity max (kN) Lift (mm) Effective plunger area (cm?) Oil volume max (cm?) Closed height (mm) Cylinder outside diameter (mm) Weight (KG)
30 YEL-30/50 300 50 44.2 221 169 100 10.5
30 YEL-30/100 300 100 44.2 442 219 100 13.5
30 YEL-30/150 300 150 44.2 663 269 100 17.5
30 YEL-30/200 300 200 44.2 885 319 100 19.5
30 YEL-30/300 300 300 44.2 1325 419 100 26
50 YEL-50/50 486 50 70.8 355 185 125 17.5
50 YEL-50/100 486 100 70.8 710 235 125 22
50 YEL-50/150 486 150 70.8 1063 285 125 30
50 YEL-50/200 486 200 70.8 1420 335 125 32
50 YEL-50/300 486 300 70.8 2130 435 125 41
100 YEL-93/50 931 50 133 663 200 180 40
100 YEL-93/100 931 100 133 1327 250 180 48.5
100 YEL-93/150 931 150 133 1989 300 180 58.5
100 YEL-93/200 931 200 133 2654 350 180 68.5
100 YEL-93/300 931 300 133 3980 450 180 83.5
140 YEL-140/50 1400 50 201 1005 211 215 60
140 YEL-140/100 1400 100 201 2010 259 215 72.5
140 YEL-140/150 1400 150 201 3015 309 215 88
140 YEL-140/200 1400 200 201 4020 359 215 102
140 YEL-140/300 1400 300 201 6030 459 215 130
220 YEL-220/50 2200 50 314 1570 245 265 105
220 YEL-220/100 2200 100 314 3140 295 265 148
220 YEL-220/150 2200 150 314 4710 395 265 189
220 YEL-220/250 2200 250 314 7850 445 265 213
340 YEL-340/50 3370 50 491 2453 275 330 183
340 YEL-340/100 3370 100 491 4906 345 330 229
340 YEL-340/150 3370 150 491 7360 395 330 263
340 YEL-340/250 3370 250 491 12300 495 330 329
430 YEL-430/50 4226 50 615 3078 335 380 296
430 YEL-430/100 4226 100 615 6157 385 380 340
430 YEL-430/150 4226 150 615 9232 435 380 385
430 YEL-430/250 4226 250 615 15400 535 380 473
560 YEL-560/50 5520 50 804 4019 375 430 390
560 YEL-560/100 5520 100 804 8038 425 430 481
560 YEL-560/150 5520 150 804 12058 475 430 537
560 YEL-560/250 5520 50 804 20100 575 430 650
670 YEL-670/50 6603 50 961 4809 395 475 545
670 YEL-670/100 6603 100 961 9621 445 475 614
670 YEL-670/150 6603 150 961 14425 495 475 683
670 YEL-670/250 6603 250 961 24100 595 475 821
880 YEL-880/50 8625 50 1256 6280 455 540 714
880 YEL-880/100 8625 100 1256 12560 505 540 901
880 YEL-880/150 8625 150 1256 18840 555 540 1008
880 YEL-880/250 8625 250 1256 31400 655 540 1170
1100 YEL-1100/50 10916 50 1590 7949 500 600 969
1100 YEL-1100/100 10916 100 1590 15896 550 600 1201
1100 YEL-1100/150 10916 150 1590 23845 600 600 1310
1100 YEL-1100/250 10916 250 1590 39741 700 600 1530
