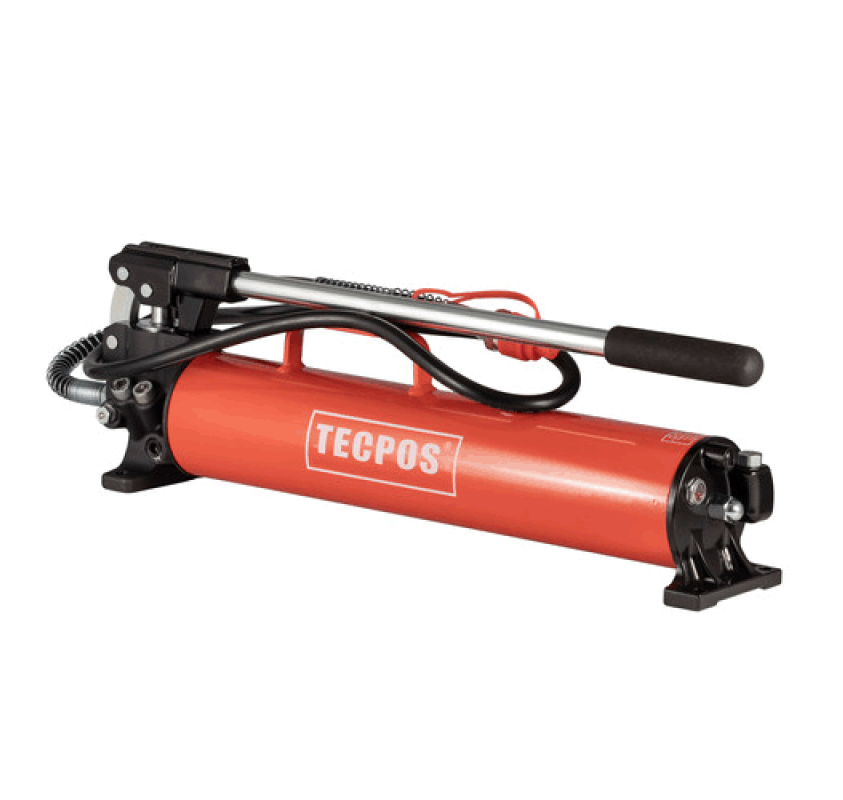

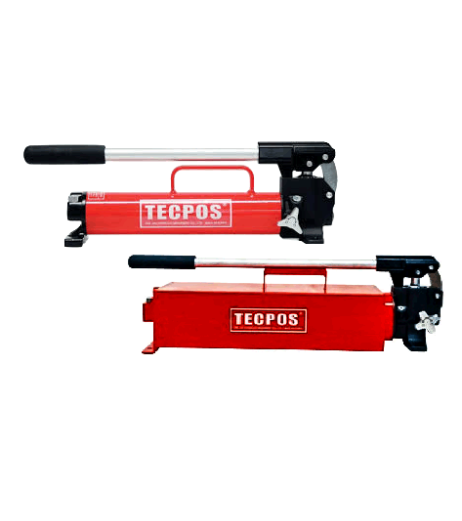

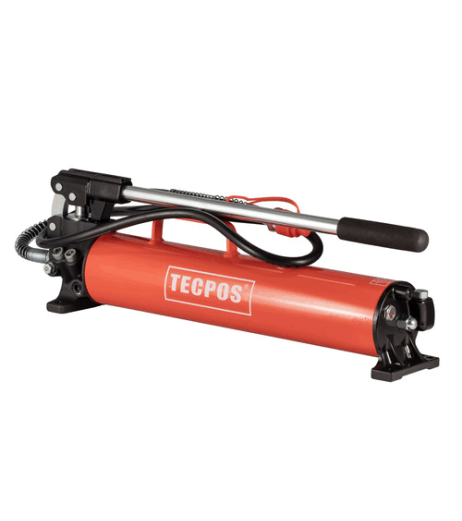

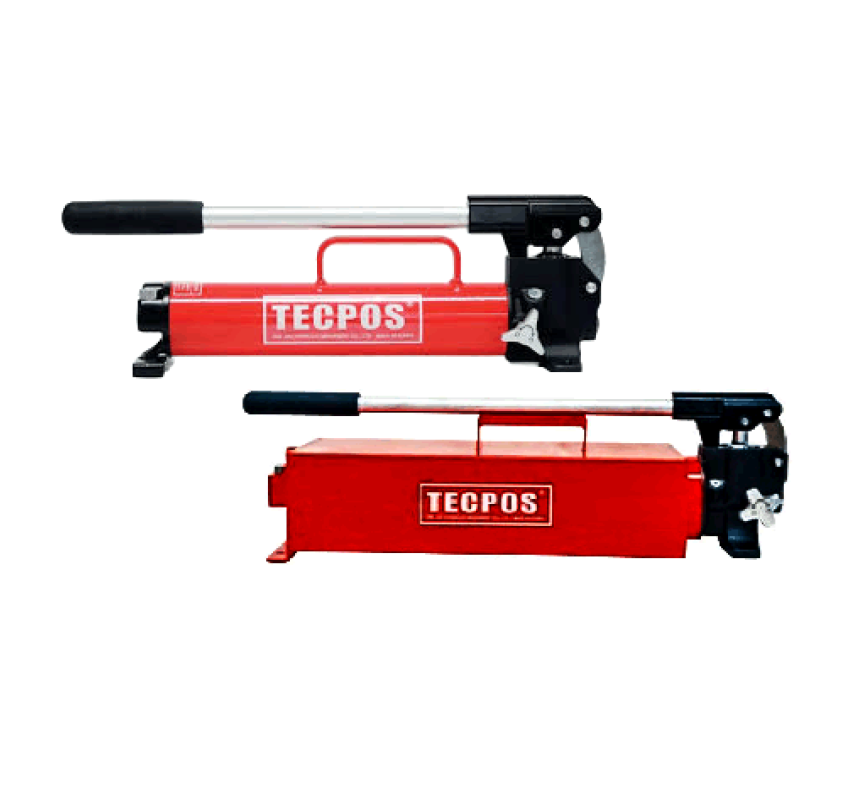

About the Hydraulic Hand Pump Tecpos ESP Range

There are 4 models in the Tecpos ESP Hydraulic Hand Pump range with differing reservoir sizes; Model ESP08 has an 800cc capacity

Model ESP17 has an 1700cc capacity

Model ESP25 has an 2500cc capacity

Model ESP50 has an 5000cc capacity

All models have a piston stroke 0f 26mm with maximum hand effort required varying between 35 and 38.5kg depending on the model.

Two Stage Hydraulic Pump

These pumps have two operating stages – low pressure and high pressure with each delivering a different quantity of hydraulic fluid per stroke. The second stage (high pressure) kicks in when the low pressure stage reaches 3000psi and increases to the maximum 10000psi.

You can see the details for each model in the specifications above.

Other Information

There is a two way valve on these pumps for easy operation of a single acting hydraulic cylinder. Turning the valve clock wise closes the valve so oil is pumped into the cylinder to extend/raise it. Turn anti-clockwise to return the cylinder by opening the valve to put the oil back in the pump reservoir.

It is important to ensure all hoses, couplers and other accessories are the correct size. There are a number of other important factors to consider when using these products which can be read about in the Tecpos ESP hydraulic pump guide above.

More Hydraulic Products

Lifting Gear Direct recognise the need for alternative lifting equipment hence our hydraulic product collection.

This range included popular equipment such as cylinders of all types with single or double acting, hollow or low pad options. Floor jacks, toe jacks and the ever popular bottle jack can also be found. Within this category you will also find a selection of accessories like hoses and couplers, manifolds and more.
