Yoke Grade 8 Metric Thread Swivel Anchor Point

Yoke Grade 8 Metric Thread Swivel Anchor Point

This swivel eye bolt from the Yoke range creates a secure anchor point. It is ideal for all direction loading thanks to the 360 degree rotation and 180 degree pivoting ring.

  • Brand:: YOKE
  • Product Code: Yoke Grade 8 Metric Thread Swivel Anchor Point
  • Availability: In Stock

Available Options

  • £36.31

Basics of the Yoke grade 8 Metric Thread Swivel Anchor Point

Available with WLL from 0.4 - 22.5 tonnes.

The bolts have a metric thread (ASME/B18.3.1M) specification grade 10.9 alloy socket head screw per din EN ISO 4762.

Proof loaded to 2.5 x WLL.

Certified to EN1677-1

100% magnaflux crack detection.

About the Yoke Grade 8 Metric Thread Swivel Anchor Point

This specific swivel anchor point comes in a big range of sizes. It is available with Working Load Limits (WLL) from 0.4 - 22.5 tonnes. Or sizes M8 up to M64.

The bolts have a metric thread (ASME/B18.3.1M) specification grade 10.9 alloy socket head screw per din EN ISO 4762.

These bolts have been forged in quenched and tempered alloy steel and have been proof loaded to 2.5 x WLL.

Tested and certified to EN1677-1 for your peace of mind regarding the quality and safety of this item. All parts are traceable to testing certificates.

100% magnaflux crack detection is undertaken on each bolt.

Also available in an extended length model, see dimensions tab for more details.

Safe Use of this Swivel anchor point.

Firstly is it wise to follow the manufacturers guidelines for each individual product. This swivel lifting point must be installed correctly to ensure safety throughout its use. Select the correct sized for the load you will be lifting and ensure the hole where it will be fitted has been drilled and tapped to the correct size. This is typically to a minimum depth of half the shank diameter + the shank length.

A torque wrench will be needed to ensure the product is installed to the correct torque whilst ensuring the flange of the anchor point meets the load surface.

Always check the torque at regular intervals to ensure continued safety. When inserting a hook into the lifting eye you must ensure it is fully inserted. The eye should sit in the bowl never on its tip.

Call Us

You can find all the detailed specifications on the Yoke Grade 8 Metric Thread Swivel Anchor Point below. This includes sizes, SWL's, dimensions and lifting angle charts. If you require some more information or need advice just give us a call. You can find all the contact details on the contact us page.





Yoke Grade 8 Metric Thread Swivel Anchor Point

Part Code A B C D E F G H R S SW
LGD-231-005 32 42 28 11 11 80 58 23 17 6 13
LGD-231-007 32 41 29 11 16 80 58 23 17 6 17
LGD-231-010 32 40 31 11 18 80 58 23 17 8 19
LGD-231-015 50 56 45 17 21 117 86 36 27 10 22
LGD-231-020 50 54 46 17 24 117 86 36 27 10 24
LGD-231-025 65 78 57 20 30 153 108 44 34 12 30
LGD-231-030 50 52 49 17 26 117 86 36 27 12 30
LGD-231-050 65 75 59 20 36 153 108 44 34 14 36
LGD-231-056 87 96 79 30 38 205 148 62 46 17 41
LGD-231-078 87 94 81 30 48 205 148 62 46 17 46
LGD-231-125 87 90 85 30 54 205 148 62 46 22 55
LGD-231-156 109 109 101 36 62 244 183 75 57 24 65
LGD-231-200 109 105 105 36 72 244 183 75 57 27 75
LGD-231-220 123 122 113 38 63 273 202 77 64 - 85
LGD-231-225 123 118 118 38 72 273 202 77 64 - 95

yoke grade swivel long thread

EXTENDED THREAD LENGTH SPECIFICATIONS

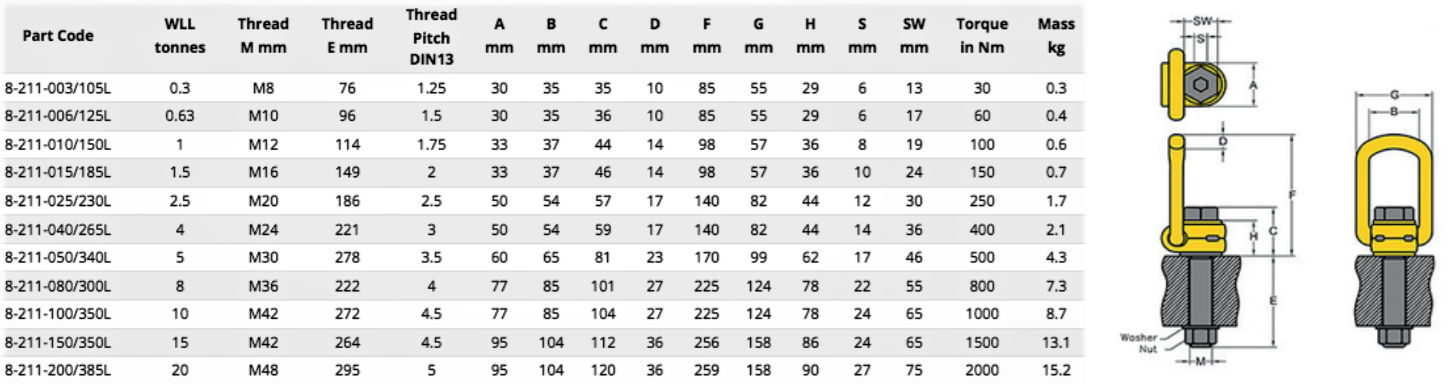

long threadExtended Thread Length Model

Part Code W.L.L. (t) W.L.L.Thread Torque in NM Box Qty. Mass (Kg)
LGD-231-005 0.5 M8 30 60  0.3
LGD-231-007 0.7 M10 60 60  0.3
LGD-231-010 1 M12 100 60  0.3
LGD-231-015 1.5 M14 120  25  0.9
LGD-231-020 2 M16 150  16  0.9
LGD-231-025 2.5 M18 200  12  1.9
LGD-231-030 3 M20 250  16  1.0
LGD-231-050 5 M24 400  10  2.0
LGD-231-056 5.6 M27 400  4  4.9
LGD-231-078 7.8 M30 500  4  5.0
LGD-231-125 12.5 M36 1000  2  5.5
LGD-231-156 15.6 M42 1500  2  10.2
LGD-231-200 20 M48 2000  2  10.9
LGD-231-220 22 M56 2100  1  14.2
LGD-231-225 22.5 M64 2200  1  15.8

WORKING LOAD APPLICATIONS


Number of leg 1 2 1 2 2 2 3/4 3/4
Load Direction  0°  90°  90°  0-45°  45-60°  unsymm.   0-45°  45-60° unsymm.
 LGD-231-005 M8 0.5 1 0.5 1 0.7 0.5 0.5 1.1 0.8 0.5
 LGD-231-007 M10 0.7 1.4 0.7 1.4   1.0  0.7 0.7 1.5  1.1 0.7
 LGD-231-010 M12 1 2 1 2  1.4  1.0 1 2.1  1.5 1
 LGD-231-015 M14 1.5 3 1.5  3.0  2.1  1.5 1.5 3.2  2.3 1.5
 LGD-231-020 M16 2 4 2  4.0  2.8  2.0 2.0  4.2  3.0 2
 LGD-231-025 M18 2.5 5 2.5   5.0  3.5  2.5 2.5 5.3  3.8 2.5
 LGD-231-030 M20 3 6 3  6.0  4.2  3.0 3 6.3  4.5 3
 LGD-231-050 M24 5 10 5  10.0  7.0  5.0 5 10.5  7.5 5.0
 LGD-231-056 M27 5.6 11.2 5.6  11.2  7.8  5.6 5.6  11.8  8.4 5.6
 LGD-231-078 M30 7.8 15.6 7.8  15.6  10.9  7.8 7.8 16.4  11.7 7.8
 LGD-231-125 M36 12.5 25.0  12.5  25.0  17.5  12.5  12.5  26.3  18.8  12.5
 LGD-231-156 M42 15.6 31.2 15.6  31.2  21.8  15.6  15.6  32.8  23.4  15.6
 LGD-231-200 M48 20 40 20.0   40.0  28.0  20.0  20.0  42.0  30.0  20.0
 LGD-231-220 M56 22 44 22.0   44.0  30.8  22.0  22.0  46.2  33.0  22.0
 LGD-231-225 M64 22.5 45 22.5  45.0  28.0  20.0  20.0  42.0  30.0  20.0
