JDN Profi 25TI - 100TI Air Hoists
- Brand:: J-D-NEUHAUS
- Product Code: JDN-Profi-25TI - 100TI-Air-Hoists
- Availability: In Stock
Call 01384 76961 for price.
About the JDN Profi 25TI - 100TI Air Hoist
The largest range of air hoists from the JDN Profi series.
25tonne up to 100 tonne capacities available. With 4 to 6 bar pressure required for operation.
Different types of control panels, including, radio, multi function, rope, single speed and sensitive.
Suitable for oil free operation, these hoists are robust, reliable and almost silent. They are used across many industries where hazardous conditions are found. These include oil, chemical, paint, aerospace, refineries, auto industries and many more.

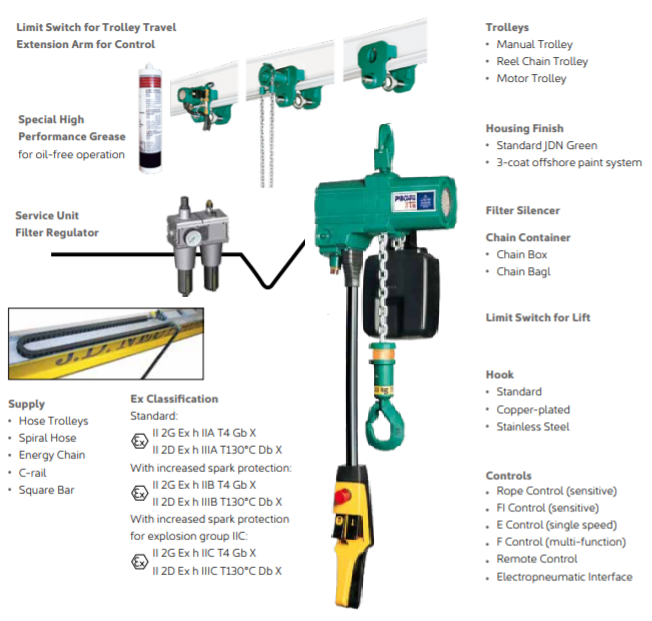

These air hoists are easy to maintain thanks to its modular system and comes with a choice of trolley's, finishes, chain containers, hooks and controls.
Other key features include; fail safe starting, planetary gearbox, high quality load chain and hooks, overload protection, 100% duty rating, low headroom, low maintenance, sound absorption, insensitive to dust, humidity etc.
More Hoisting Options
There are many other types of hoisting equipment on the market and each have their own niche. Air hoists have a very specific set of requirements such as a compressed air supply, whilst electric hoists need electricity in a variety of power supply's. Then there are the manual hoists where no power is needed at all. So consider your options and browse our extensive hoist range to determine which type of hoist is best for your operation.
Call us if you need any guidance.
|25 TI||30 TI||37 TI||40 TI||50 TI||60 TI||75 TI||100 TI|
|Type||25 TI||30 TI||37 TI||40 TI||50 TI||60 TI||75 TI||100 TI|
|Number of chain strands||2||3||4||3||4|
|Lifting speed at full load||m/min||1,25||1||0,75||0,7||0,55||0,45||0,53||0,4|
|Lifting speed without load||m/min||2,4||1,7||1,3||1,33||1|
|Lowering speed at full load||m/min||2,8||2,0||1,6||1,25||0,95|
|Air consumption at full load - lifting||m³/min||6,5||7,6|
|Air consumption at full load - lowering||m³/min||2,9||6|
|Air connection||G 1½|
|Hose dimension (Ø inside)||mm||35|
|Weight at standard, rope control||kg||550||850||940||1800||2000|
|Chain dimension||mm||23,5 x 66||32 x 90|
|Weight of 1 m chain||kg||12,2||21,3|
|Lenght of control at standard lift||m||2|
|Sound level at full load - lifting1||dB(A)||78||77|
|Sound level at full load - lowering1||dB(A)||82||83|
